| Nguồn gốc: | Hà Bắc, Trung Quốc |
|---|---|
| Hàng hiệu: | Yuntong |
| Chứng nhận: | CE |
| Số mô hình: | YT-F-2075 |
| Số lượng đặt hàng tối thiểu: | 10 mét vuông |
| Giá bán: | USD 2-50 |
| chi tiết đóng gói: | vải không thấm nước, hộp carton hoặc vỏ gỗ |
| Thời gian giao hàng: | 5-8 NGÀY LÀM VIỆC |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây, paypal |
| Khả năng cung cấp: | 300m2/tuần |
| Tên sản phẩm: | Lưới dây cáp thép không gỉ | Từ khóa: | Lưới cáp không gỉ |
|---|---|---|---|
| Loại sản phẩm: | Lưới dây X-có xu hướng | Vật liệu: | SS304, SS316 |
| Đường kính dây dây: | 2,0 mm, 2,5 mm, 3,0 mm | Kích thước lỗ lưới: | Từ 50 mm đến 100 mm hoặc lớn hơn |
| Loại lưới: | liền mạch | Kích thước mắt lưới: | Phong tục |
| Làm nổi bật: | stainless steel cable rope net,handrail wire cable mesh,falling curing stairway net |
||

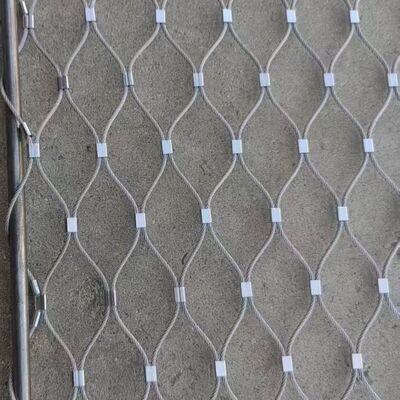

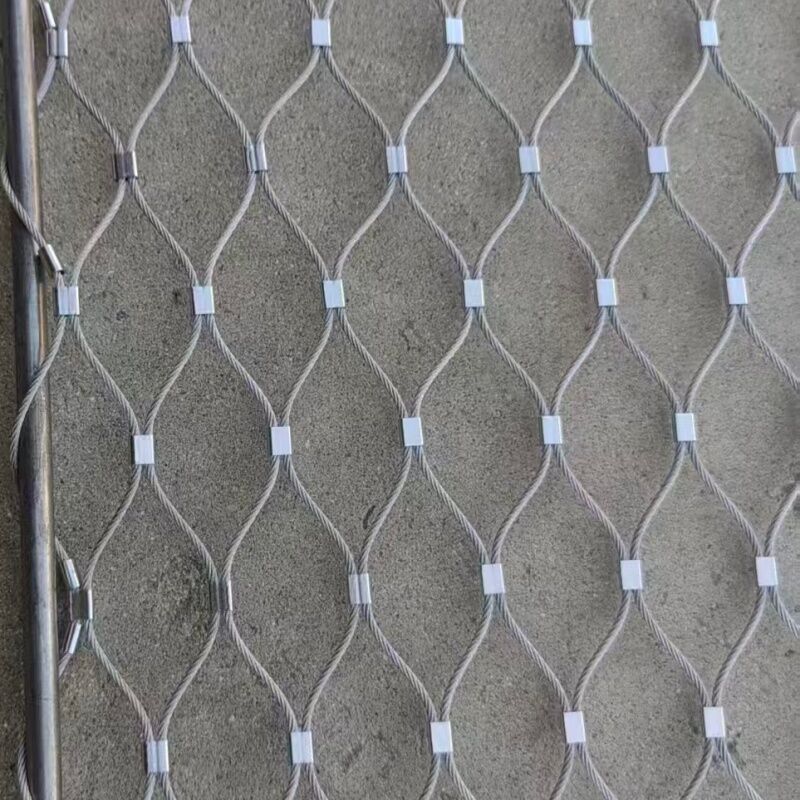

Stairway Falling Curing Stainless Steel Wire Cable Rope Net For Handrail
The product features of Stainless Steel Wire Cable Rope Net
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
The stainless steel Wire Cable Rope Net is rhombus mesh, has excellent flexible performance, virtually
indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the
stainless steel grade includes AISI 304 or AISI 316 material group.
Brief Intructions :
| Product Name | Architectual Facade Cladding |
| Mesh Style | X-tend Mesh |
| Mesh Type | Seamless Ferruled |
| Ferrules | Stainless Steel Ferrules or Aluminum Ferrules |
| Application | Architectual Facade Cladding |
| Material | SS304 , SS316 , SS316L , |
| Wire Rope | 2.0 mm , 2.5 mm , 3.0 mm |
| Mesh Aperture | 50 x 50 mm , 60 x 60 mm , 75 x 75 mm , 100 x 100 mm |
| Mesh Angle | 60 Degree |
| Mesh Orientation | Horizontal or Vertical |
Features of Stainless Steel Wire Cable Rope Net
The pliable, high-strength mesh system provides architects and designers with the scope to create solutions for many different applications. It is UV and weather resistant.Webnet mesh can also be supplied in a black anodised or a galvanised finish.
Our technical support team is available to offer full design and technical advice on projects of any scale and complexity.We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
